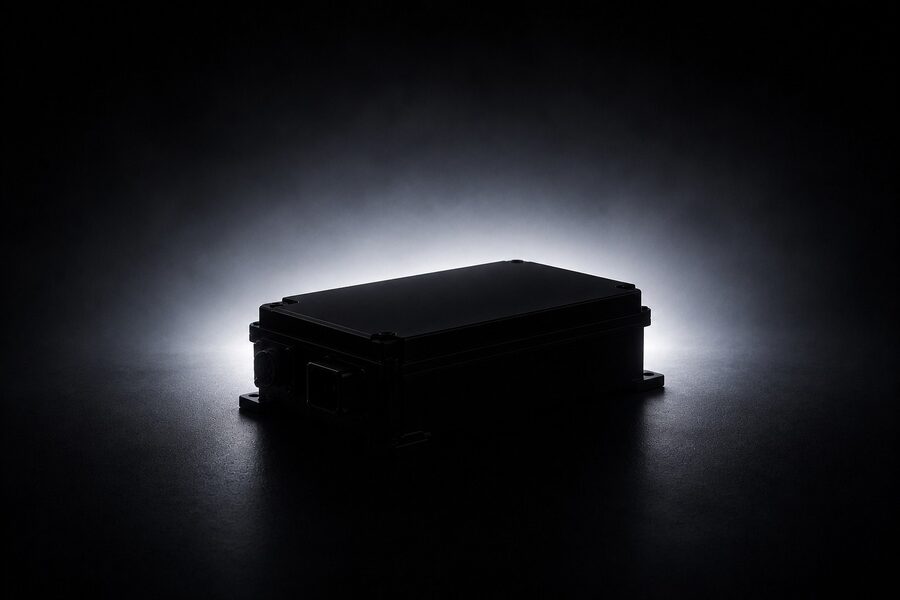

24V 40Ah LFP Pack
In developmentRVB-STF-RB-24040-X
A simple pack for field robots, with IP65 metal housing. Versatile in application with a long service life, BMS included for communication and safety protections.
- Nominal voltage
- 25.6 V
- Nominal capacity
- 40 Ah
- Nominal energy
- 1,024 Wh
- Continuous discharge
- 30 A, provisional
- BMS / comms
- CAN
Typical applications
- Agricultural robots
- Outdoor inspection platforms
- Survey and mapping robots
- All-weather mobile robots
Full specifications
Nominal values at 25°C unless noted.
Electrical Parameters
- Cell Configuration
- 8S2P
- Cell Chemistry
- LiFePO₄ (LFP)
- Nominal Voltage
- 25.6 V
- Nominal Capacity
- 40 Ah0.33C, 25 °C
- Nominal Energy
- 1,024 Wh
- Charge Cut-off Voltage
- 29.2 V
- Discharge Cut-off Voltage
- 20.0 V
- Cycle Life
- ≥ 4,000 cycles0.5C/0.5C, to 80% of rated capacity
Operating Conditions
- Max Continuous Discharge Current
- 30 A (0.75C, provisional)
- Max Peak Discharge Current
- 100 A (provisional)≤ 10 s
- Max Continuous Charge Current
- 40 A (1C, provisional)
- Standard Charge Method
- CC/CV20 A / 28.4 V
- Discharge Temperature
- −20 to 55 °C (−4 to 131 °F)
- Charge Temperature
- 0 to 45 °C (32 to 113 °F)
- Long-term Storage
- 0 to 25 °C (32 to 77 °F)At 30–50% charge; recharge every 3 months
Dimensions & Weight
- Length
- 230 mm (est.)
- Width
- 170 mm (est.)
- Height
- 140 mm (est.)
- Weight
- To be confirmed
- IP Rating
- IP65
- Housing Material
- Powder-coated steel, blue top
- Handles
- Two, on opposite sides
Protections & Connections
- BMS / Communication Interface
- Smart BMSCAN, protocol to be confirmed
- Protection Functions
- Voltage, current, short circuit, temperature
- Cell Balancing
- Passive, 30 mA
- SOC Display
- LCD: SOC, voltage, current, Ah
- Terminals
- M6 stud
- Communication Connector
- M12, 5-pin, A-coded
Documentation
- Datasheet
- Available on request
