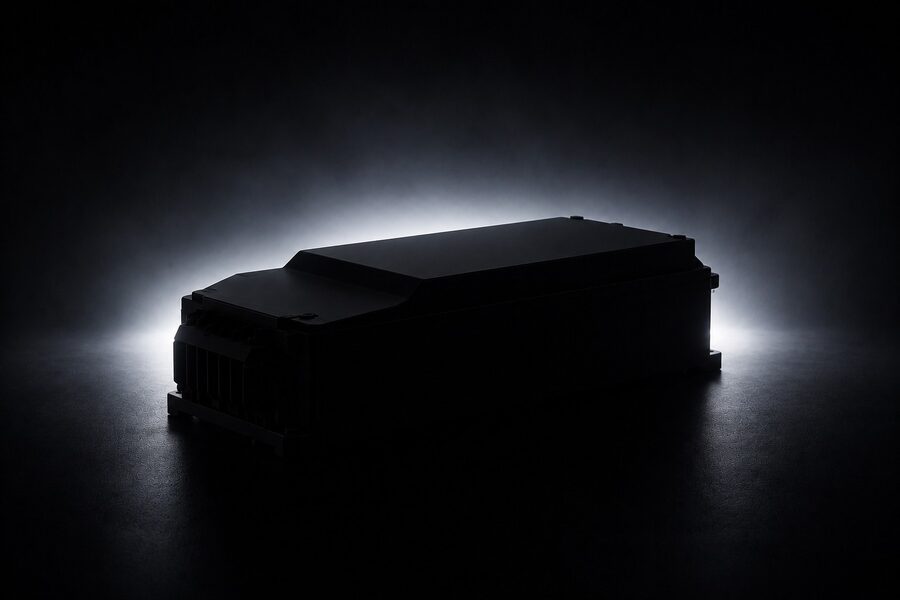

48V 33Ah NMC Pack battery pack
Power

48V 33Ah NMC Pack

RVB-STN-JB-48033-X

A power pack for mobile robots with high energy density, high power and fast charge needs. Versatile in application with a compact form factor. It is a bare pack with no BMS, so your system provides protection and balancing.

Nominal voltage
51.8 V
Nominal capacity
33 Ah
Nominal energy
1,709 Wh
Continuous discharge
90 A
BMS / comms
None (bare pack)
Typical applications
  • Humanoids & quadrupeds
  • Drones & UAV
  • Mobile manipulators
  • High-power mobile robots

Request quote

Full specifications

Nominal values at 25°C unless noted.

Electrical Parameters

Cell Configuration
14S1P
Cell Chemistry
NMC (Li-ion)
Nominal Voltage
51.8 V
Nominal Capacity
33 Ah0.5C, 25 °C
Nominal Energy
1,709 Wh
Charge Cut-off Voltage
58.8 V
Discharge Cut-off Voltage
39.2 V
Cycle Life
≥ 800 cycles0.5C/0.5C, to 80% of rated capacity

Operating Conditions

Max Continuous Discharge Current
90 A (2.73C)
Max Peak Discharge Current
110 A≤ 30 s
Max Continuous Charge Current
33 A (1C)
Standard Charge Method
CC/CV16.5 A / 58.8 V
Discharge Temperature
−20 to 55 °C (−4 to 131 °F)
Charge Temperature
0 to 45 °C (32 to 113 °F)
Long-term Storage
22 to 28 °C (71.6 to 82.4 °F)At about 50% charge; recharge every 3 months

Dimensions & Weight

Length
212 mm
Width
165 mm
Height
95 mm
Weight
6 kg (13.2 lb)
IP Rating
IP54
Housing Material
Pouch soft pack, black sleeve, corner guards
Handles
One carry handle

Protections & Connections

BMS / Communication Interface
None (bare pack)Balance lead only
Protection Functions
None (host system must protect)
Cell Balancing
External, via 16-pin balance lead
Terminals
AS150U (8 AWG, 200 mm) + 16-pin balance lead

Documentation

Datasheet
Available on request
