Industrial
48V 30Ah LFP Pack
In developmentRVB-STF-RB-48030-X

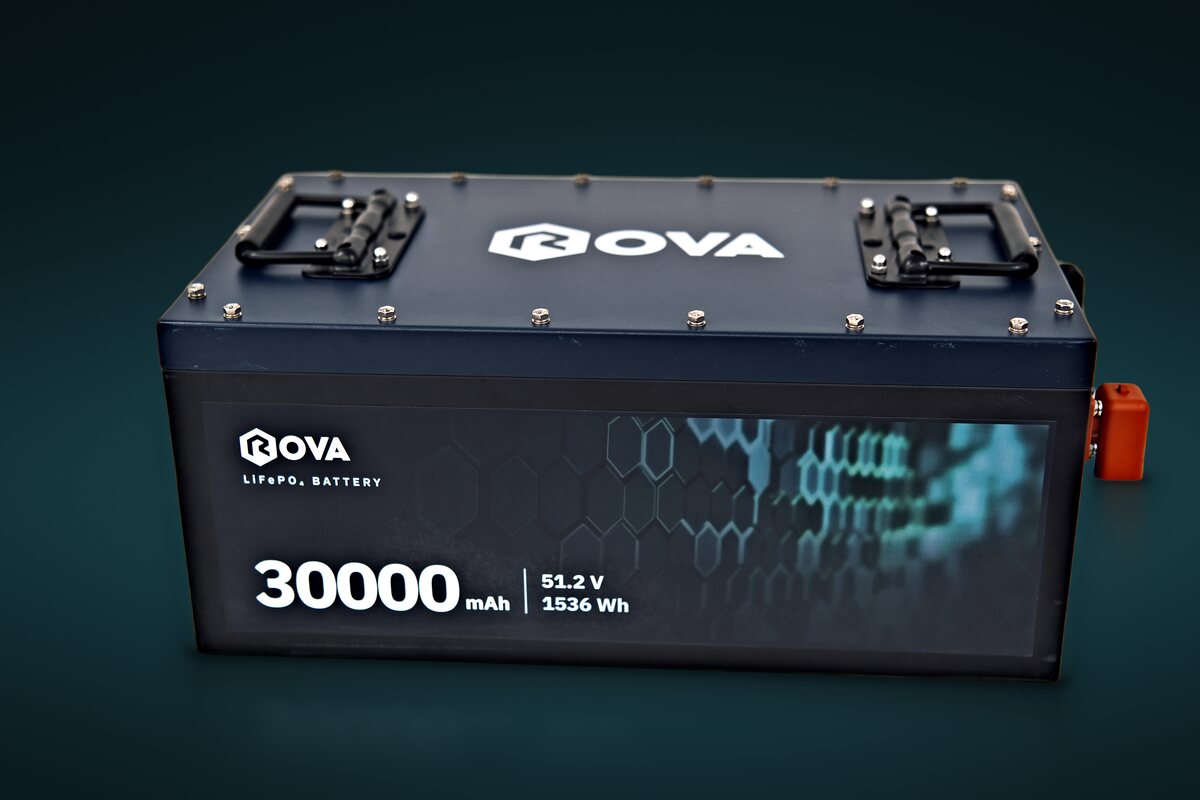

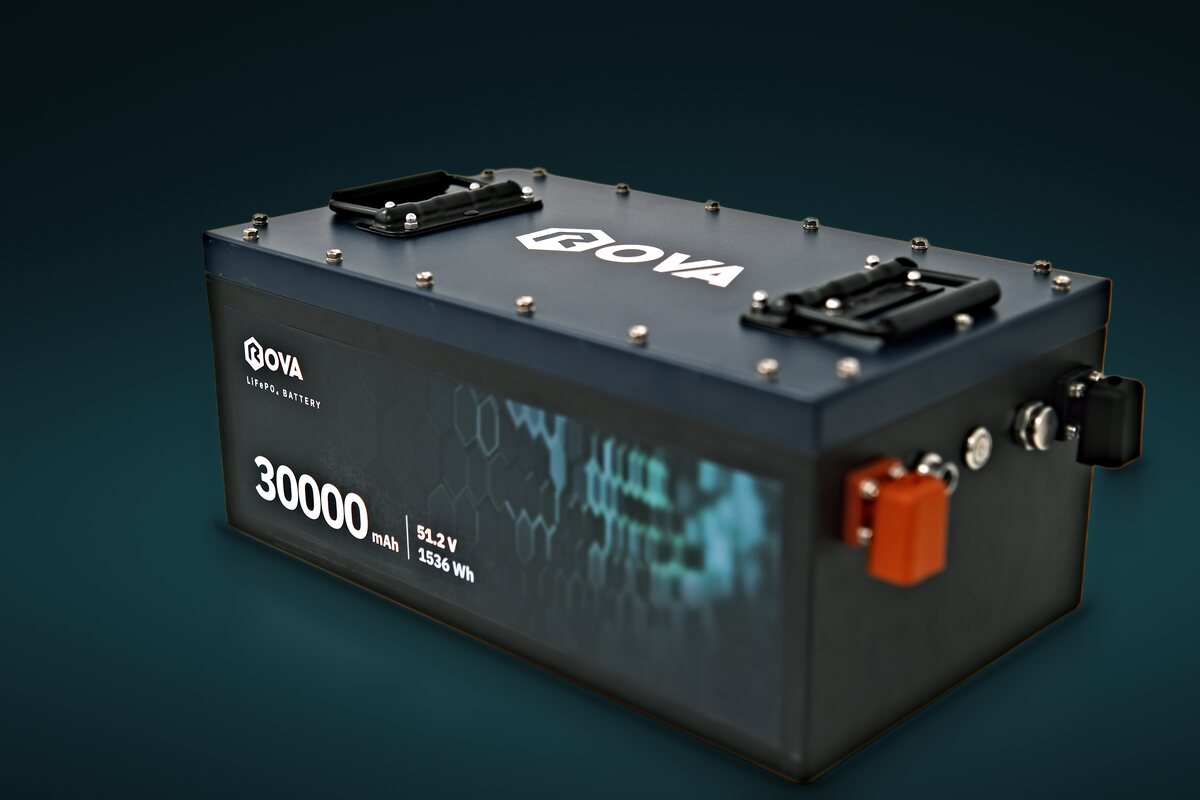

A 48V LFP pack for industrial robots and material-handling platforms, with 60A continuous discharge. It has isolated CAN, parallel operation of up to 8 packs, an IP65 steel housing and two top handles.
- Nominal voltage
- 51.2 V
- Nominal capacity
- 30 Ah
- Nominal energy
- 1,536 Wh
- Continuous discharge
- 60 A
- BMS / comms
- Isolated CAN
Typical applications
- Autonomous mobile robots (AMR)
- Material-handling platforms
- Warehouse & intralogistics
- Mid-duty mobile systems
Full specifications
Nominal values at 25°C unless noted.
Electrical Parameters
- Cell Configuration
- 16S2P
- Cell Chemistry
- LiFePO₄ (LFP)
- Nominal Voltage
- 51.2 V
- Nominal Capacity
- 30 Ah0.33C, 25 °C
- Nominal Energy
- 1,536 Wh
- Charge Cut-off Voltage
- 58.4 V
- Discharge Cut-off Voltage
- 40.0 V
- Cycle Life
- ≥ 2,000 cycles0.5C/1C, to 80% of rated capacity
Operating Conditions
- Max Continuous Discharge Current
- 60 A (2C)
- Max Peak Discharge Current
- 90 A≤ 10 s
- Max Continuous Charge Current
- 15 A (0.5C)
- Standard Charge Method
- CC/CV15 A / 56.8 V
- Discharge Temperature
- −20 to 55 °C (−4 to 131 °F)
- Charge Temperature
- 0 to 45 °C (32 to 113 °F)
- Long-term Storage
- 0 to 25 °C (32 to 77 °F)At 30–50% charge; recharge every 3 months
Dimensions & Weight
- Length
- 401 mm+30 mm with terminals
- Width
- 231 mm
- Height
- 168 mm+14 mm with handles
- Weight
- 14.7 kg (32.4 lb)
- IP Rating
- IP65
- Housing Material
- Sheet-metal steel; navy top, black base
- Handles
- Two, on top
Protections & Connections
- BMS / Communication Interface
- Smart BMSIsolated CAN 2.0B, 29‑bit, 500 kbit/s default
- Protection Functions
- Voltage, current, short circuit, temperature, cell imbalance
- Cell Balancing
- Passive, ≈330 mA

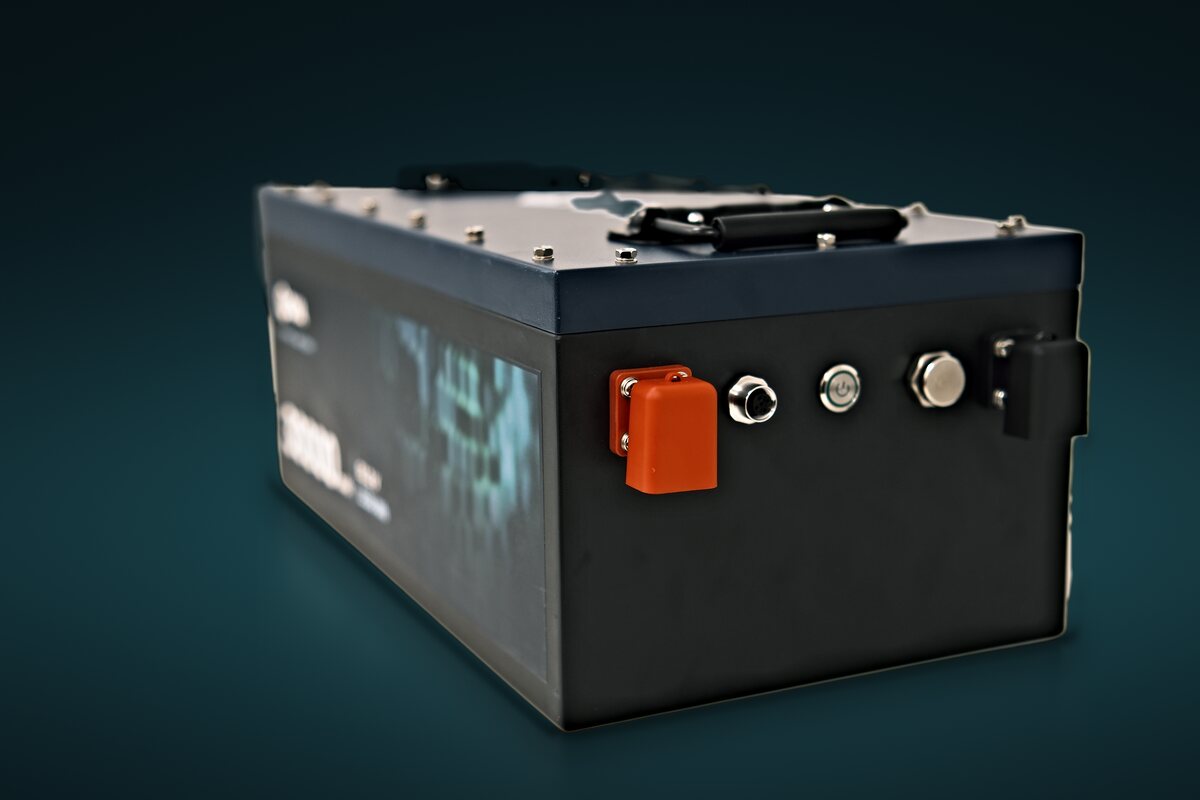

- Terminals
- M8 studs, on the end face
- Communication Connector
- 1 × M12, 5-pin, A-coded
- Parallel Operation
- Yes, multi-master, up to 8 packs
Documentation
- Datasheet
- Available on request
