Industrial

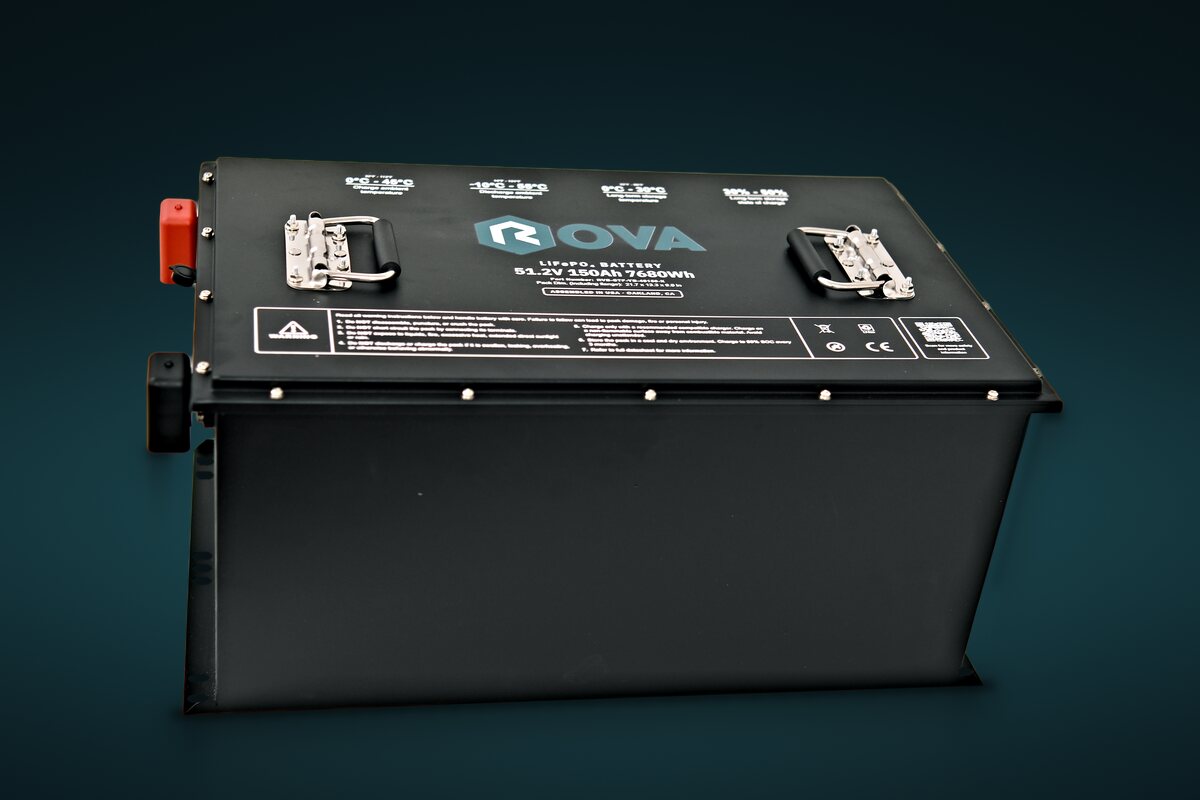

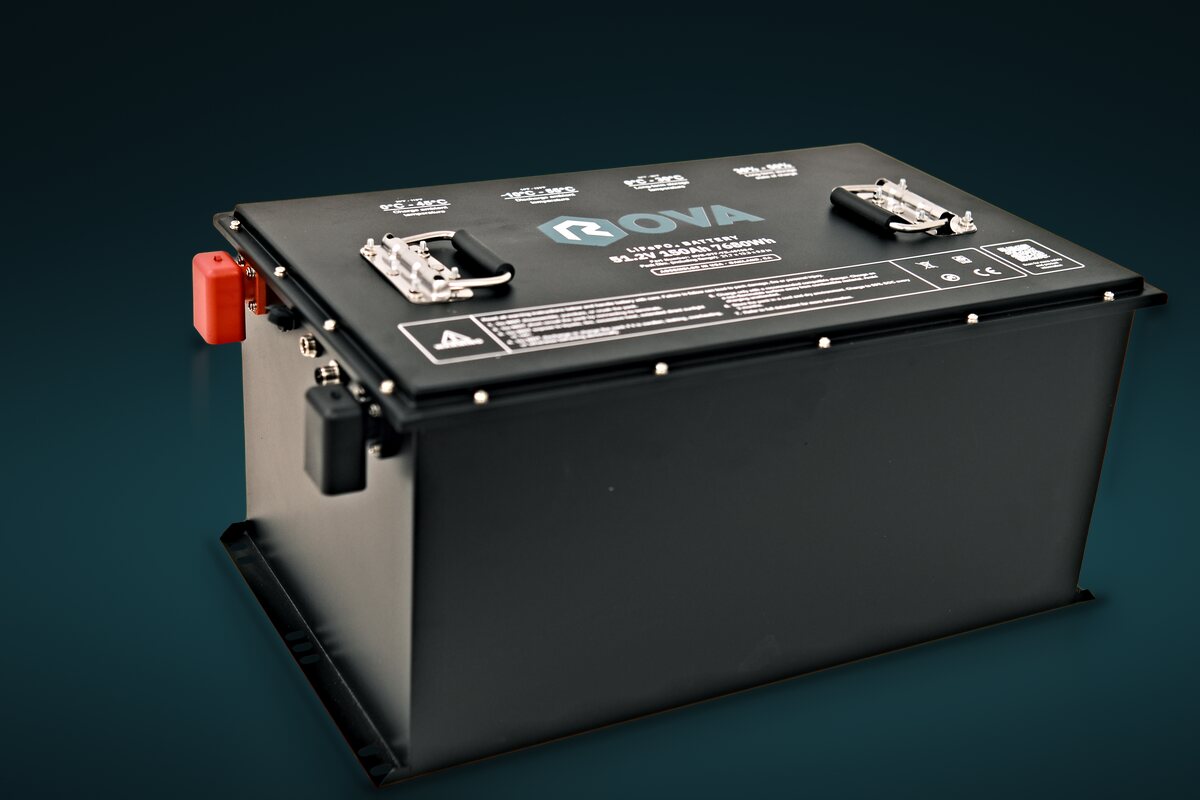

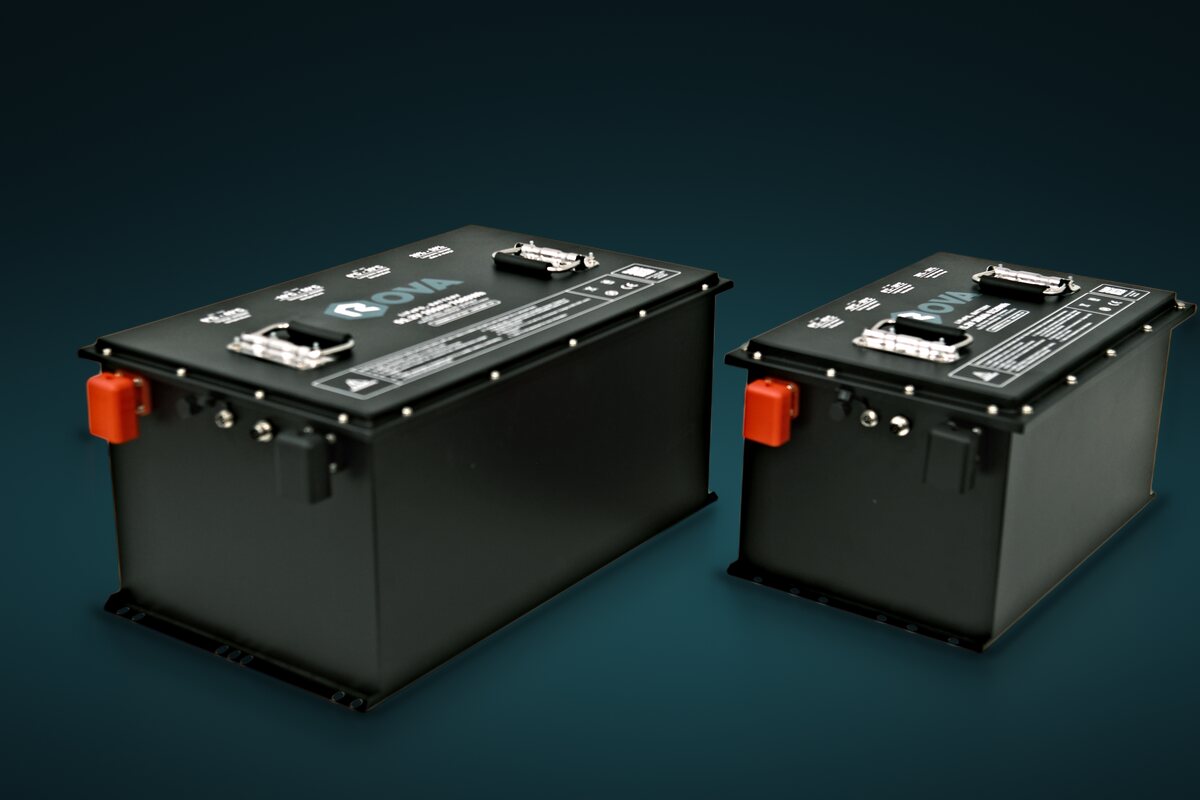

48V 150Ah LFP Pack
RVB-STF-YB-48150-X
An extended-range 48V LFP pack for industrial robots and material-handling platforms, with 150A continuous discharge, CAN and Bluetooth communications, and a rated service life of 4,000 cycles or more.
- Nominal voltage
- 51.2 V
- Nominal capacity
- 150 Ah
- Nominal energy
- 7,680 Wh
- Continuous discharge
- 150 A
- BMS / comms
- CAN + Bluetooth
Typical applications
- Autonomous mobile robots (AMR)
- Material-handling platforms
- Warehouse & intralogistics
- Mid-duty mobile systems
Full specifications
Nominal values at 25°C unless noted.
Electrical Parameters
- Cell Configuration
- 16S1P
- Cell Chemistry
- LiFePO₄ (LFP)
- Nominal Voltage
- 51.2 V
- Nominal Capacity
- 150 Ah0.5C, 25 °C
- Nominal Energy
- 7,680 Wh
- Charge Cut-off Voltage
- 58.4 V
- Discharge Cut-off Voltage
- 40.0 V
- Cycle Life
- ≥ 4,000 cycles0.5C/0.5C, to 80% of rated capacity
Operating Conditions
- Max Continuous Discharge Current
- 150 A (1C)
- Max Peak Discharge Current
- 300 A≤ 10 s
- Max Continuous Charge Current
- 150 A (1C)
- Standard Charge Method
- CC/CV75 A / 56.8 V
- Discharge Temperature
- −10 to 55 °C (14 to 131 °F)
- Charge Temperature
- 0 to 45 °C (32 to 113 °F)
- Long-term Storage
- 0 to 30 °C (32 to 86 °F)At 30–50% charge; recharge every 3 months
Dimensions & Weight
- Length
- 551 mmIncluding mounting flange
- Width
- 338 mmIncluding mounting flange
- Height
- 251 mm
- Weight
- 59 kg (130.1 lb)
- IP Rating
- IP54
- Housing Material
- Steel, black powder coat
Protections & Connections
- BMS / Communication Interface
- Smart BMSCAN and Bluetooth app
- Protection Functions
- Voltage, current, short circuit, temperature
- Cell Balancing
- Active, 0.6 A
- SOC Display
- LCD display, included
- Terminals
- M8 stud
- Communication Connector
- M12, 5-pin, A-coded
Documentation
- Datasheet
- Available on request
